SC UPC 58MM FTTH Fiber Optic Fast Connectors Single Mode 30N
Description:

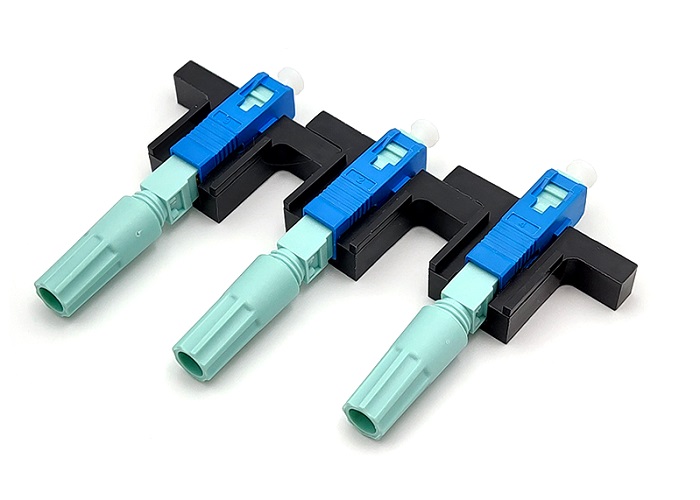

The 58MM SC UPC Single Mode FTTH Tool Cold Connector is a revolutionary field installable fiber optic connector that eliminates the need for epoxy and polishing. It features a patented mechanical connector body design that incorporates a factory-installed fiber stub and pre-polished ceramic ferrule. Using this connector can quickly assemble optical fibers, increase the flexibility of optical cabling design, and greatly reduce the time for optical fiber termination.
This quick connector series has gained popularity in LAN, CCTV and FTTH optical cabling in buildings and floors. It simplifies the process of fiber optic connections without the need for expensive epoxy and polishing equipment. At the same time, the connector maintains a high-quality fit, providing a reliable and high-performance connection.
In general, 58MM SC UPC Single Mode FTTH Tool Cold Connector is a field-installed fiber optic connector with simplified operation steps, suitable for various optical cabling applications. Its unique and easy-to-use design enables fast fiber optic connections to ensure stable and reliable data transmission.
Application:
FTTx Rebuilding the wiring in optical equipments rooms
Following types of connector is available: SC/PC,FC/PC
Feature:
1. Fast and easy termination of rectangular section FTTH drop cable
2. No polishing or adhesives required
3. Terminate cable to exact required length
4. Can be re-opened up to 5 times
5. Simple to assemble with our guide rail tool
6. Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
7. Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
