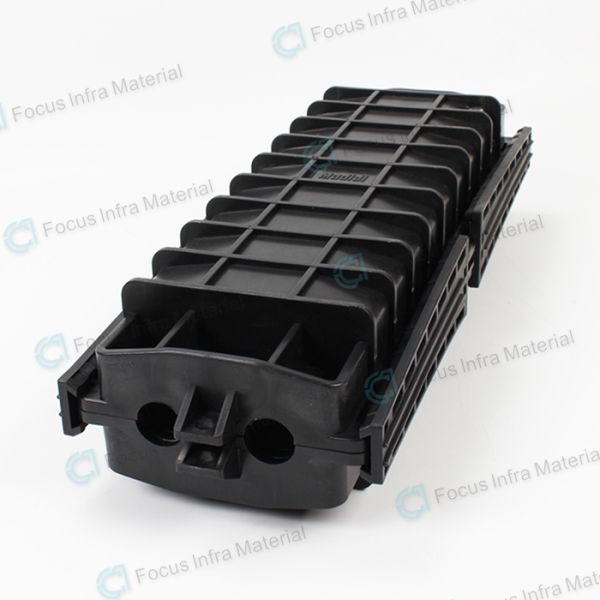

2 inlets 2 outlets Outdoor Aerial Dome Type Fiber Optical Splice Closure
Description:
2 inlets 2 outlets Outdoor Aerial Dome Type Fiber Optical Splice Closure, also known as 2 inlets 2 outlets Outdoor Aerial Dome Type Fiber Splice joint box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The solid shell and main structure of optical cable junction box can endure the worst environmental changes, and play a flame retardant role at the same time. Waterproof effect, so that vibration, impact, cable tension, twist and so on are protected.
classification:
1. According to the appearance structure can be divided into cap cable joint box and horizontal cable joint box;
2. According to the optical cable laying method, overhead, pipeline (tunnel) and direct burial types;
3. According to the optical cable connection mode is divided into direct connection and differential connection;
4. There are thermal shrinkage seal types and mechanical seal types as sealed.
Specification:
| Product name | Dome Type Vertical Fiber Optic Splice Box |
| Protection level | IP68 |
| Scope of application | 12 core to 96 core |
| Gross weight | 2.7 kg |
| Main material | ABS |
| Boxing information | 6 cases each, gross weight 16.3kg, outer case size: 52.5*36.5*37cm |
| Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
| Ambient temperature | - 40 °C ~ + 60 °C |
| Service life | ≥20 years |
| Application scope | FTTH FTTB FTTX Network |
| Atmospheric pressure | 70kPa~106kPa |
| Insulation resistance | >2*10MΩ/500V(pc) |
| Tensile strength | >1200N |
