Jumper Joint Optic Fiber Heat Shrink Sleeves 45mm Waterproof

Fiber Optic Cable Sleeve 45mm To Protec Optical Fiber Jumper Joint

Description:

Fiber Optic Cable Sleeve 45mm To Protec Optical Fiber Jumper Joint is used to protect the Drop Cable Joint Connection. The construction of the three protective and strengthening elements of the Fiber Optic Cable Sleeve For Fibre Optic Patch Cord Joint Protect is distinctive in the function that each provides. The inner stainless steel pin keeps the sleeve rigid and stable. The pin is vibratory tumbled with a special medium. This eliminates the possibility of fiber scarring or material penetration, both of which could damage the sensitive glass fibers. The inner tube is made of a specially designed material that compresses. The fiber splice becomes encapsulated within the inner tube. The outer tube is made of a heat-shrinking polyolefin. This encloses the inner tube and the encapsulated fiber splice, providing double protection and ensuring that moisture and air are eliminated from the fiber drop cable connection.

In other words, Fiber Optic Cable Sleeve 45mm To Protec Optical Fiber Jumper Joint is a protective element for outdoor or indoor cable and between indoor cable and single core fiber jumper.

Focus Infra’s Fiber Optic Cable Sleeve To Protec Optical Fiber Jumper Joint is available length of 40 mm, 45 mm, 50 mm, 60 mm. however, other lengths are available upon request.

Feature:

Product name: fiber heat shrinkable tube

Steel needle material: 304 stainless steel

Outer skin material: environmentally friendly PE

Product unit: 50pcs per bag

Length dimension: 60mm 50mm 45mm 40mm

Product color: transparent

Scope of application: optical fiber fusion splicing, protecting optical fiber

Technical Parameters:

Fiber Heat Shrink Sleeves 45mm

fiber optic heat shrink waterproof

fiber splice heat shrink 4.5cm

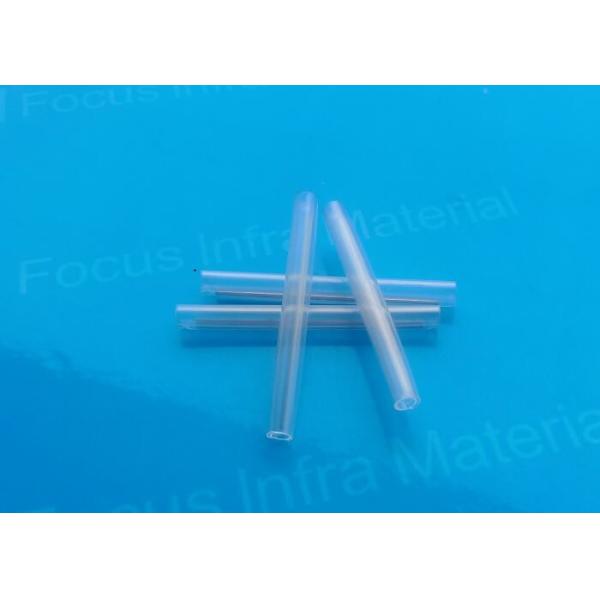

Jumper Joint Optic Fiber Heat Shrink Sleeves 45mm Waterproof Images
